Vacuum suction cup

Vacuum suction cup is a device used in a vacuum system to grip and move objects for pick-and-place applications. These devices operate in conjunction with a vacuum generator to lift objects.They consist of the suction cup (elastomer part) and a connecting element. they are capable of firmly gripping parts in high-speed motion applications, as well as providing gentle handling of fragile parts.

They come in two general shapes:

Flat

Flat suction cups are suited for handling workpieces with flat or slightly curved surfaces, such as metal and glass plates, plastic sheets and wooden boards.  Flat cups have a small inner volume and, thus, evacuate quickly and can grip in a very short time.

Bellows.

Bellows suction cups, other the other hand, have one or more accordion-like convolutions.  This lets them compensate for varying workpiece heights and handle parts with uneven surfaces.

Both types come in a number of shapes, including round with Rubber/Silicone material.

Sizes & Colors

As your request. (Customized)

Industrial uses for Vacuum suction cup.

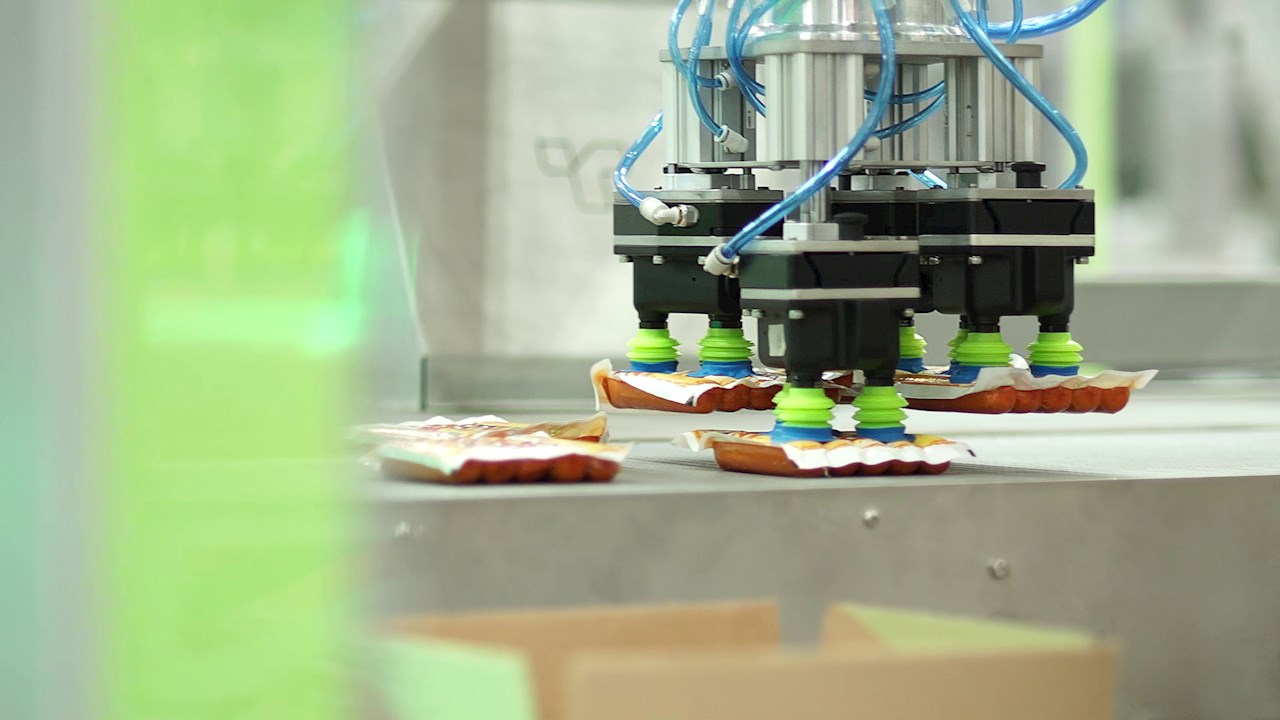

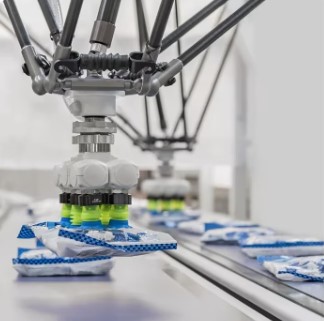

Vacuum handling systems are a mainstay in many industries, typically used as below:

l lPackaging

l lFood

l lWoodworking

l lMetalworking

l lAutomotive

l lSemiconductor

l lEctronics etc
