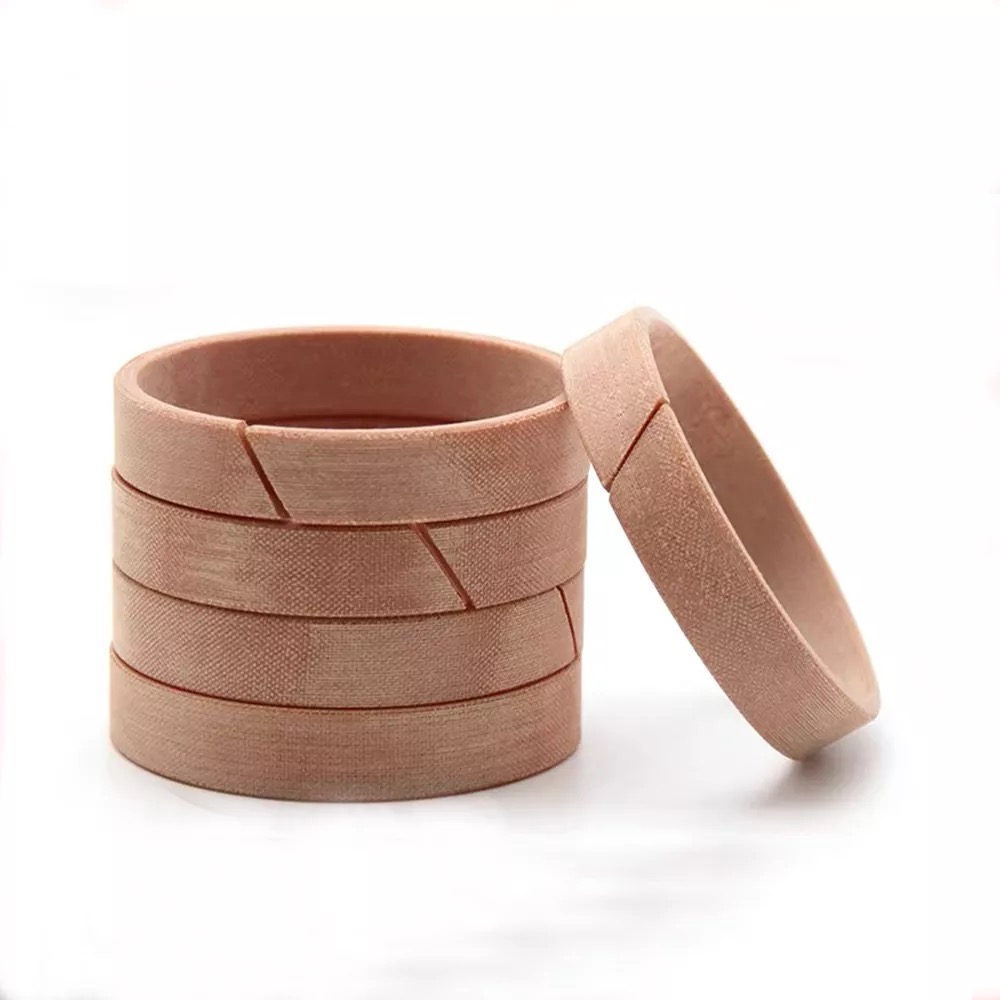

Guide Ring-Brown

Guide rings, also known as wear rings and bearings, are used to guide the piston and rod in a hydraulic cylinder to prevents metal-to-metal contact and improves seal life performance.

Material Selection

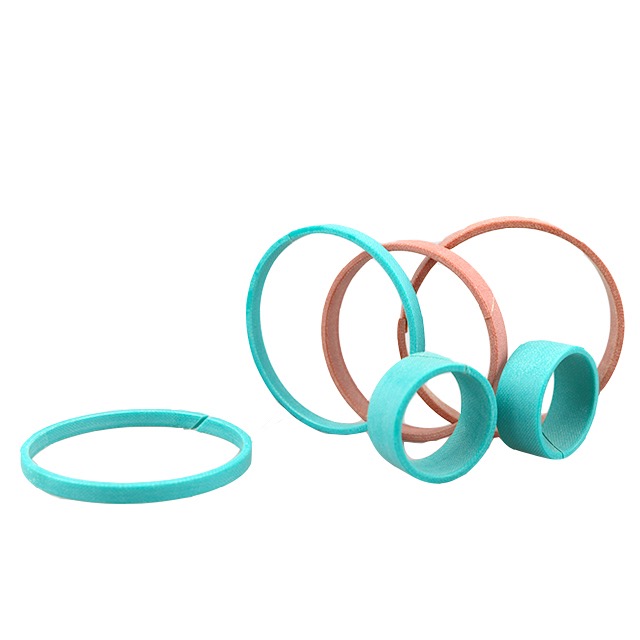

l Phenolic resin fiber (Brown color)

l Polyester resin fiber (Turquoise)

Type Selection

Scarf Cut (Angle Cut)

Butt Cut (Straight Cut)

Sizes

ID: 10-500mm

Or Customized

Industrial uses for Backup Ring

l Packaging Filling Machine

l Hydraulic and Pneumatic Cylinders

l Medical Pumps / Compressors

l Aerospace Pumps / Compressors

l Industrial Booster Pumps

l Cryogenic Pumping Systems
