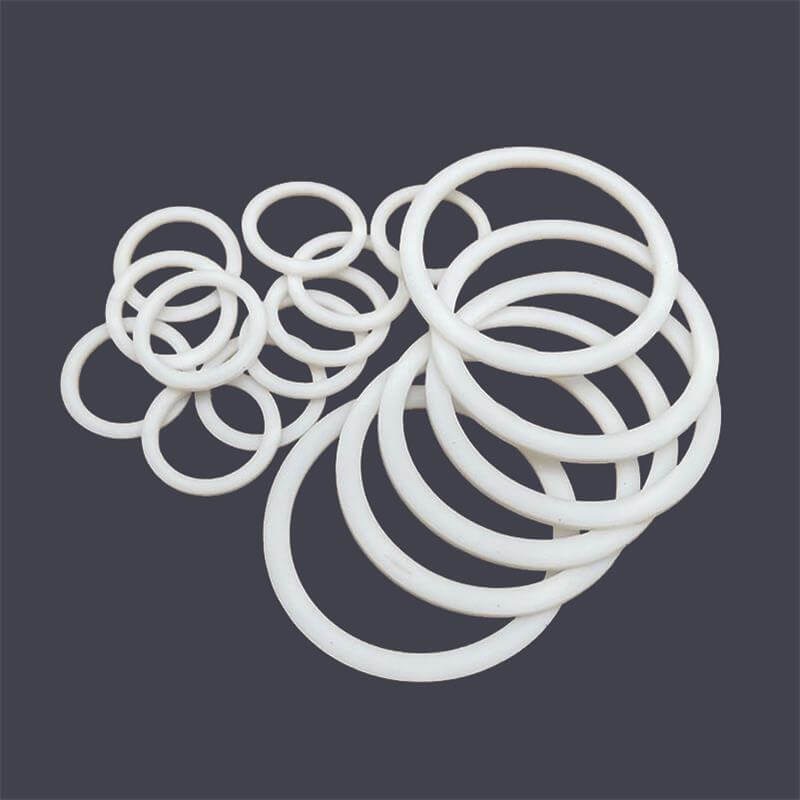

BACKUP RING

Backup Ring also called Anti Extrusion Rings is an inflexible ring that holds an elastomeric seal to its outlined shape and in its right place. Usually used with O Rings to eliminate extrusion at high pressures.

There are 3 basic standard shapes for Backup Ring in the market: solid (uncut), scarf cut (single turn). Spiral cut （multi-turn）.

Virgin PTFE/PTFE filled Other material/PEEK/Rubber

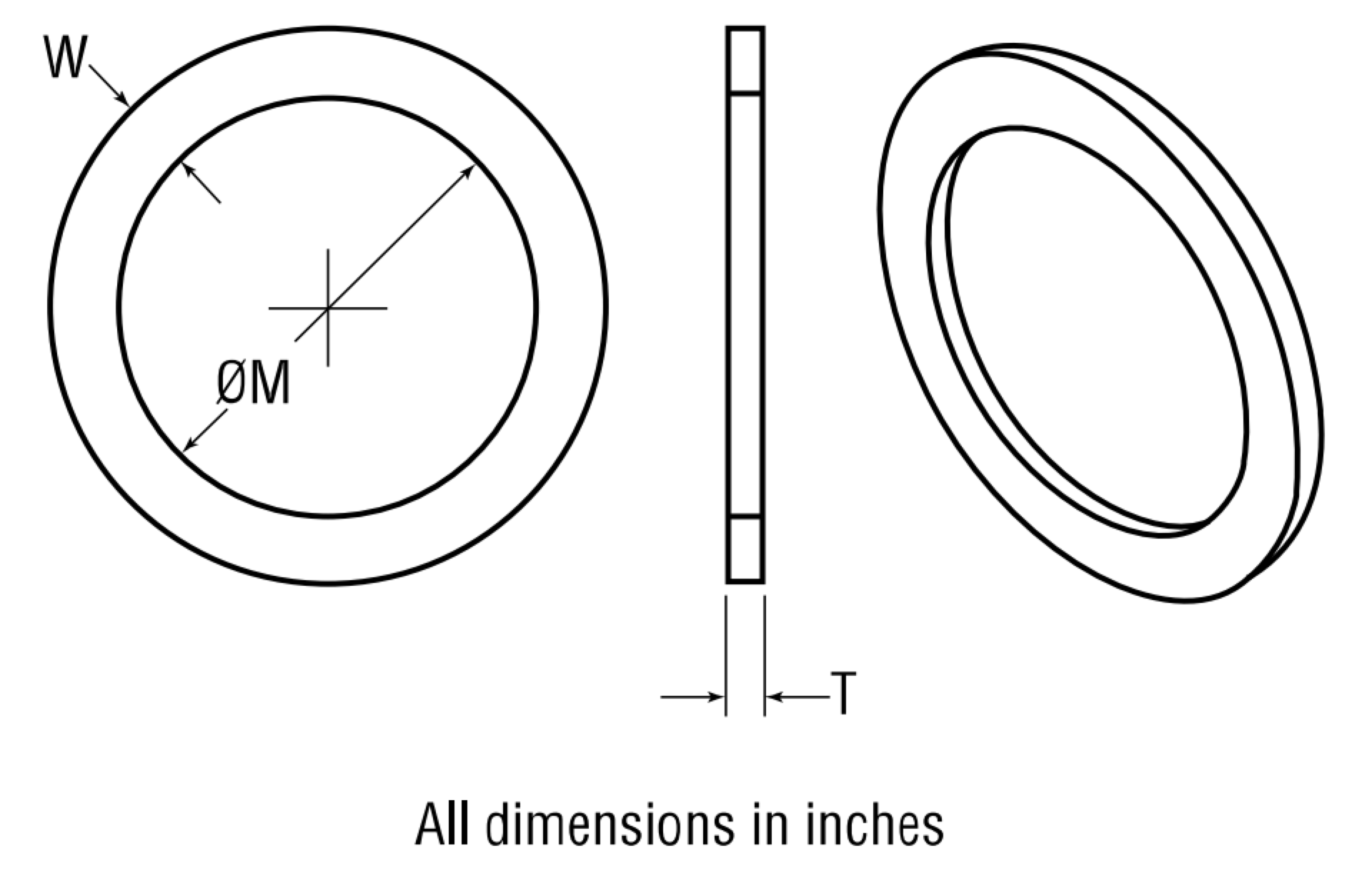

Sizes

ID:2.44-660.5mm

OD:5.14-672.48mm

T:1.24-2.97mm

Or Customized

Industrial uses for Backup Ring

l Hydraulic cylinders

l High pressure valves

l Pneumatic systems

l Aerospace sector
